Operating System Unit 1.
INTRODUCTION
Operating System:
- An Operating System (OS) is an interface between a computer
user and computer hardware. An operating system is a software which performs
all the basic tasks like file management, memory management, process
management, handling input and output, and controlling peripheral devices such
as disk drives and printers.
An Operating System performs all the basic tasks like managing
file, process, and memory. Thus operating system acts as manager of all the
resources, i.e. resource manager. Thus operating system becomes an interface between
user and machine.
An
Operating System is a software that acts as an intermediate between the
hardware and the user. It is a kind of resource manager that manages both
hardware and software resources of a system
There can be various resources present in the system and
to manage it manually is a very very difficult task. So, we make the use of the
Operating System to manage all the resources present in the system.
Some popular Operating Systems include Linux Operating
System, Windows Operating System, VMS, OS/400, AIX, z/OS, etc.
Goals of the Operating
System
There
are two types of goals of an Operating System i.e. Primary Goals and Secondary
Goal.- Primary Goal: Primary goal of operating system is convenience for the user
opearting system exist because they are supposed to make it easier to
computer with them without them
The
primary goal of an Operating System is to provide a user-friendly and convenient
environment. We know that it is not compulsory to use the Operating System, but
things become harder when the user has to perform all the process scheduling
and converting the user code into machine code is also very difficult. So, we
make the use of an Operating System to act as an intermediate between us and
the hardware. All you need to do is give commands to the Operating System and
the Operating System will do the rest for you. So, the Operating System should
be convenient to use.
- Secondary Goal: other goal of operating system is efficient operating of the
computer system
The
secondary goal of an Operating System is efficiency. The Operating System
should perform all the management of resources in such a way that the resources
are fully utilised and no resource should be held idle if some request to that
resource is there at that instant of time.
The
purpose of an operating system is to be
provided an environment in which an user can
Types
of Operating Systems / Evaluation of Operating Systems :-
Some types
are used in operating systems are as
follows-
1.Mainframe
Systems
Mainframe computer system of where the first computers used
to tackle many commercial and scientific application It is the system where the
first computer used to handle many commercial scientific applications. The
growth of mainframe systems traced from simple batch system where the computer
runs one and only one application to time shared systems which allowed for user
interaction with the computer system
Reduce
setup time by batching similar jobs Automatic job sequencing – automatically
transfers control from one job to another. First rudimentary operating system.
Resident monitor
·
initial control in monitor
·
control transfers to the job
·
when the job completes control transfers to monitor
2. Batch Operating System –
In batch operating system if
after some to process p1 , required some input device operation it leaves the
C.P.U and program input request and go for input device at that time C.P.U
becomes idle
In this type of
system, there is no direct interaction between user and the computer.
·
This type of OS accepts
more than one jobs and these jobs are batched/ grouped together according to their
similar requirements. This is done by the computer operator. Whenever the
computer becomes available, the batched jobs are sent for execution and
gradually the output is sent back to the user.
·
It allowed only one program at a time.
This OS is responsible for scheduling the jobs
according to priority and the resource required.
This type of operating system does not interact with the computer directly. There is an operator which takes similar jobs having same requirement and group them into batches. It is the responsibility of operator to sort the jobs with similar needs.
Advantages of Batch Operating System:
·
It is
very difficult to guess or know the time required by any job to complete.
Processors of the batch systems know how long the job would be when it is in
queue
·
Multiple
users can share the batch systems
·
The idle
time for batch system is very less
·
It is
easy to manage large work repeatedly in batch systems
Disadvantages of Batch Operating
System:
·
Increase
C.P.U idleness
·
Decrease
throughput of system
·
The
computer operators should be well known with batch systems
·
Batch
systems are hard to debug
·
It is
sometime costly
Eg – IBM O/S/2
03 Multiprogramming Operating
System:
In multiprogramming operating system after same
time amount of CPU time it job requires some input operation it will leave the
CPU to perform the input operation .At that time CPU is not idle because immediately
at that time another job is scheduled into the CPU
This type of OS is used to execute more than one
jobs simultaneously by a single processor. it increases CPU utilization by
organizing jobs so that the CPU always has one job to execute
Multiprogramming operating systems use the mechanism of job scheduling
and CPU scheduling. Multiprogramming concept increases CPU utilization by
organization jobs so that the CPU always has one job to execute the idea behind
multiprogramming concept. The operating system keeps several jobs in memory
simultaneously as shown in below figure
Note :- If the job is leaving the CPU to
perform input operation then another job which is ready for execution will be
sheduled into CPU.
Advantage :-
·
Increase CPU utillization
·
Increase through put of the system
O/S
|
J2
|
J2
|
J3
|
J4
|
Memory layout for a multiprogramming system
04 Time-Sharing/multitasking Operating Systems
Multiprogramed batch system
provide on environment where the various system resources where utilized
effectively . but it did not provide for user interaction with the computer
system . Time sharing / multitasking Os is a logical extension of
multiprogramming . The cpu executes multiple jobs by switching among them but
the switches occur so frequently that the users can interact that the user can
interact with each program while it is running.
A time share operating system allows many users to share the
computer simultaneously . since each action or command in a time –shared system
tends to be short .only a little CPU time is needed for each user .
The time sharing system is also known as multi user systems. The
CPU executes multiple jobs by switching among them but the switches occurs so
frequently that the user can interact with each program while it is running. An
interactive computer system provides direct communication between a user and
system Time-sharing (or multitasking) OS is a logical extension of
multiprogramming. It provides extra facilities such as:
·
Faster switching between multiple jobs to make processing faster.
·
Allows multiple users to share computer system simultaneously.
·
The users can interact with each job while it is running.
The disadvantages of time sharing system are:
• It is more complex than multiprogrammed
operating system
• The system must have memory management &
protection, since several jobs are kept
in memory at the same time.
• Time sharing system must also provide a file
system, so disk management is required.
• It provides mechanism for concurrent execution
which requires complex CPU
scheduling schemes.
05 Multiprocessor system :-
Most system to data are
sinngle –processor system that is they have only one main CPU How ever
multiprocessor system (also known as parallel system or tightly coupled system
) are growing in importance Ex: UNIX, LINUX. Multiprocessor Systems have 3 main
Advantages
a. Increased
throughput: No. of processes computed per unit time. By increasing the no.
of processors move work can be done in less time. The speed up ratio with N
processors is not N, but it is less than N. Because a certain amount of
overhead is incurred in keeping all the
parts working correctly.
b. Increased
Reliability: If functions can be properly distributed among several
processors, then the failure of one processor will not halt the system, but
slow it down. This ability to continue to operate in spite of failure makes the
system fault tolerant.
·
06 Real-TimeOperating Systems (RTOS) :-
·
A real-time operating
system (RTOS) is a multitasking operating system intended for applications with
fixed deadlines (real-time computing). Such applications include some small
embedded systems, automobile engine controllers, industrial robots, spacecraft,
industrial control, and some large-scale computing systems.
·
These
types of OSs serves the real-time systems. The time interval required to
process and respond to inputs is very small. This time interval is called response
time.
·
Real-time systems are used when there are time requirements are very strict like
missile systems, air traffic control systems, robots etc.
·
Real time system
is used when there are rigid time requirements on the operation of a processor
or flow of data. Sensors bring data to the computers. The computer analyzes
data and adjusts controls to modify the sensors inputs. System that controls
scientific experiments, medical imaging systems and some display systems are
real time systems. The disadvantages of real time system are
Two types of Real-Time Operating
System which are as follows:
·
Hard Real-Time Systems:
A hard real-time system
guarantees that critical tasks be completed on time. This goal requires that
all delays in the system be bounded, from the retrieval of stored data to the
time that it takes the operating system to finish any request made of it. Such
time constraints dictate the facilities that are available in hard real-time
systems
These OSs are meant for the applications where time constraints are very strict and even the shortest possible delay is not acceptable. These systems are built for saving life like automatic parachutes or air bags which are required to be readily available in case of any accident. Virtual memory is almost never found in these systems.
These OSs are meant for the applications where time constraints are very strict and even the shortest possible delay is not acceptable. These systems are built for saving life like automatic parachutes or air bags which are required to be readily available in case of any accident. Virtual memory is almost never found in these systems.
·
Soft Real-Time Systems:
Soft Real-Time Systems:
A soft real-time system is a less
restrictive type of real-time system. Here, a critical real-time task gets
priority over other tasks and retains that priority until it completes. The
soft real-time system can be mixed with other types of systems. Due to less
restriction, they are risky to use for industrial control and robotics.
These OSs are for applications where for time-constraint is less strict
These OSs are for applications where for time-constraint is less strict
These have more limited
utility than hard real time systems. Missing an occasional deadline is
acceptable
Basic
Functions of Operation System:
The various functions of
operating system are as follows:
1. Process Management:
• A program does nothing
unless their instructions are executed by a CPU.A process is a program in
execution. A time shared user program such as a complier is a process. A word
processing program being run by an individual user on a pc is a process.
• A system task such as
sending output to a printer is also a process. A process needs certain
resources including CPU time, memory files & I/O devices to accomplish its
task.
• These resources are either given to the
process when it is created or allocated to it while it is running. The OS is
responsible for the following activities of process management.
• Creating & deleting
both user & system processes.
• Suspending & resuming
processes.
• Providing mechanism for
process synchronization.
• Providing mechanism for
process communication.
• Providing mechanism for
deadlock handling.
2. Main Memory
Management:
The main memory is central
to the operation of a modern computer system. Main memory is a large array of
words or bytes ranging in size from hundreds of thousand to billions. Main
memory stores the quickly accessible data shared by the CPU & I/O device.
The central processor reads instruction from main memory during instruction
fetch cycle & it both reads &writes data from main memory during the
data fetch cycle. The main memory is generally the only large storage device
that the CPU is able to address & access directly.
Memory
management module performs the task of allocation and de-allocation of memory
space to programs in need of this resources.
3.File Management:
File
management is one of the most important components of an OS computer can store
information on several different types of physical media magnetic tape,
magnetic disk & optical disk are the most common media. Each medium is controlled
by a device such as disk drive or tape drive those has unique characteristics.
These characteristics include access speed, capacity, data transfer rate &
access method (sequential or random).For convenient use of computer system the
OS provides a uniform logical view of information storage. The OS abstracts
from the physical properties of its storage devices to define a logical storage
unit the file. A file is collection of related information defined by its
creator. The OS is responsible for the following activities of file management.
•
Creating & deleting files.
•
Creating & deleting directories.
•
Supporting primitives for manipulating files & directories.
•
Mapping files into secondary storage.
•
Backing up files on non-volatile media.
4.
I/O System Management:
One
of the purposes of an OS is to hide the peculiarities of specific hardware
devices from the user. For example, in UNIX the peculiarities of I/O devices
are hidden from the bulk of the OS itself by the I/O subsystem. The I/O subsystem
consists of:
•
A memory management component that includes buffering, catching & spooling.
•
A general device- driver interfaces drivers for specific hardware devices. Only
the device driver knows the peculiarities of the specific device to which it is
assigned.
5. Secondary
Storage Management:
The main purpose of computer system is to execute programs. These programs with
the data they access must be in main memory during execution. As the main
memory is too small to accommodate all data & programs & because the
data that it holds are lost when power is lost. The computer system must
provide secondary storage to back-up main memory. Most modern computer systems
are disks as the storage medium to store data & program. The operating
system is responsible for the following activities of disk management.
•
Free space management.
•
Storage allocation.
•
Disk scheduling Because secondary storage is used frequently it must be used
efficiently.
6. Networking:
A
distributed system is a collection of processors that don’t share memory
peripheral devices or a clock. Each processor has its own local memory &
clock and the processor communicate with one another through various
communication lines such as high speed buses or networks. The processors in the
system are connected through communication networks which are configured in a
number of different ways. The communication network design must consider
message routing & connection strategies are the problems of connection
& security.
7.
Protection or security:
If
a computer system has multi users & allow the concurrent execution of
multiple processes then the various processes must be protected from one
another’s activities. For that purpose, mechanisms ensure that files, memory
segments, CPU & other resources can be operated on by only those processes
that have gained proper authorization from the OS.
8.
Command interpretation: One of the most important functions of the OS is
connected interpretation where it acts as the interface between the user &
the OS. System Calls: System calls provide the interface between a process
& the OS. These are usually available in the form of assembly language
instruction. Some systems allow system calls to be made directly from a high
level language program like C, BCPL and PERL etc. systems calls occur in
different ways depending on the computer in use. System calls can be roughly
grouped into 5 major categories.
8.
Job
accounting: Keeping track of time &
resource used by various job and users.
9. Communication management: Coordination and assignment of compilers, interpreters,
and another software resource of the various users of the computer systems
· views of the
Operating Systems
The Operating system
control and coordinates the user of the hardware among the various application

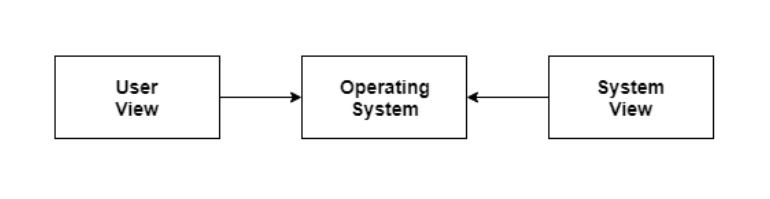

program for the various user . Operating System can be explored from two view
point the user and the system
User View
System View
The operating system allocates resources among
running programs. It controls the sharing of resources within multiple programs.
User View
The user view computer various by the interface being used most computer users
sit in front of the PC consisting of a monitor keyboard mouse and system unit .
Such system is designed for one user to monopolize . Its resources maximize the
work that the user is performing .
User view:The user view of the computer varies by the
interface being used. The examples are -windows XP, vista, windows 7 etc.
The user view of computer depends on the interface which
is user friendly. Every computer that is to be operated by an individual
requires a user interface
Some computers have
little or no user view. For example, embedded computers in home devices and
automobiles may have numeric, keypads but they and their operating systems are
designed primarily to run without user intervention.
If the user is using a personal
computer, the operating system is largely designed to make the interaction
easy. Some attention is also paid to the performance of the system, but there
is no need for the operating system to worry about resource utilization. This
is because the personal computer uses all the resources available and there is
no sharing.
System View
From the computer point of view the operating system is the
program that is most intimate with the hardware . We can view on operating
System as a resource allocator . A computer system has many resource – h/w and
software that may be required to solve a problem . CPU time memory space file
storage space input device and soon . The operating system acts as the
manager of these resource .
Another view of the operating system is it is a control
program. A control program manages the execution of user programs to present
the errors in proper use of the computer. It is especially concerned of the
user the operation and controls the I/O devices.
The operating system can also
work as a control program. It manages all the processes and I/O devices so that
the computer system works smoothly and there are no errors. It makes sure that
the I/O devices work in a proper manner without creating problems.
No comments:
Post a Comment
