THREADS
A
threads is a single sequence stream within a process , because threads have
some of the properties of process they are sometimes called lightweight process
A
threads can be any several stares (Running , Blocked, Ready , or Terminate )
Each

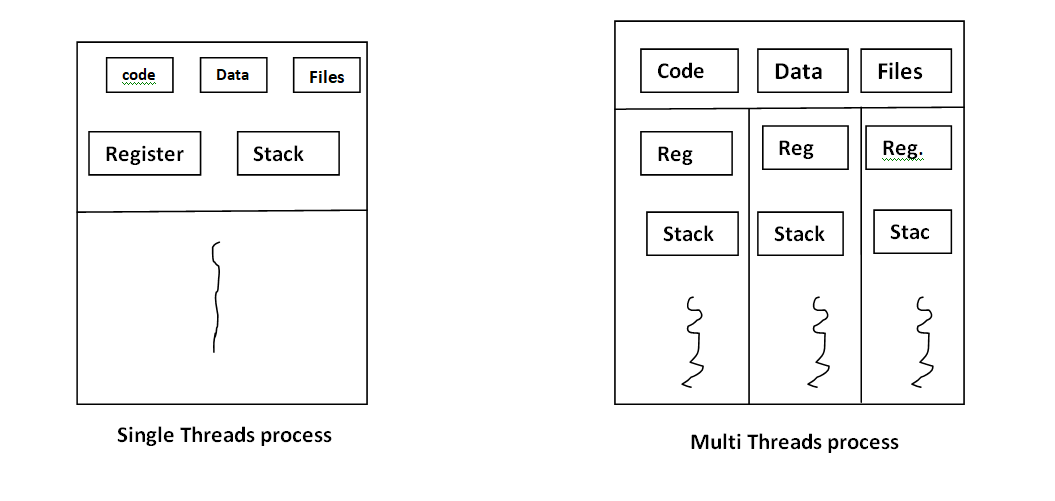

threads has its own stack
A
threads has or consists of a program counter (PC), a register set and a stack
space
Threads
are not independent of one other likes processes a result threads shares with
other threads their code section , data section, OS resource also known as task
, such as open files and signals.
1. Improve Responsiveness:- If the process is divided into multiple
threads then if One threads is completed, then immediately output will be
responded . this response will be faster as compare to response of process.
Eg-
SBTE Site.
2. Faster context Switching :- The
context switching time between the treads is very very less as compared to
context switching time between the process because the threads will have less
context compared to process .
Resource
Sharing :-
The resource like code, data, and files will
be shared among all the threads with in the process but every threads will have
its own stack and register
4 . Effective Utilization of
Multiprocessor System :- If the process is divided into multiple threads, then
different threads of the process can be scheduled onto a different CPU so that
the process execution will be faster .
5. Economical :- the implementation of
threads does not requires any cast . There are various programming language
API’S which support implementation of threads eg-JAVA’s API, Threads.
Types Of Threads :-
1. Kernel
Level Threads/System Threads :- System threads are threads created by OS
t serve or execute user. These threads need a small data structure and a stack
for the execution . switching between threads does not requires to change
memory access information so it if fast
2. User Level Threads :- User level threads are
threads created by user application. These threads need only a stack and a
program counter for their execution . No need for OS resource switching among
threads is fast.
Difference
between User level threads and kernel level threads-
USER
LEVEL THREADS:-
1. These are created by user or programmer
2. OS can not recognize the user level threads
3. If one user level threads performing block
system call them entire process will be blocked
4.
Dependent threads
5. Designing user level threads is easy
6. Less context
7. No H/W Support required
USER
LEVEL THREADS:-
1. These are created by OS
2. OS recognizes the kernel threads
3. If one kernel level threads performing
blocking system call . then another threads will continue the execution.
4. independent threads.
5. Designing kernel level thread is
complicated
6. More context
7. Scheduling of kernel level threads require
H/W support
Note:- Threads scheduling also known as
GANG Scheduling
There are three common way of establishing
relationship between user threads and kernel threads.
Multithreading models are three types :-
1. MANY – TO- ONE MODEL
2. ONE-TO-ONE MODEL
3. MANY-TO-MANY MODEL
MANY – TO-
ONE MODEL:- The many
to one model maps many user-level threads to one kernel threads . however the
entire process will block if a threads makes a blocking system call .also because only one threads can access the
kernel at time. However user few system continue to use the model because of it
inability to take advantage of multiple processing cores
ONE-TO-MANY MOEL:- There is one-to one
relationship of user level threads to the kernel level threads. This model
provides more concurrency than the many to one model. It also, another threads
to run when a thread makes a blocking
system call
The one to one model maps each user threads to
a kernel threads.
MANY-TO-MANY MOEL :- The many to many model
multiplexes many user level threads to a smaller or equal number of kernel threads .
The number of kernel threads may be specific
to either a particular machine.
Allows many user level threads to be mapped to
many kernel threads.
Difference between process and Threads
PROCESS:-
1. A process is the heaviest unit of OS
2. Process own resource allocated by the
OS
3. Communication between independent
process need to the help of OS
4. Multiple process without using threads
use more resource
Threads
:-
1. A threads is the lightest unit of OS. Existing
within the process
2. Threads do not own resource it share
the resource own by the process in which it exist.
3. Threads communicates each other
without the help of OS
4. Multiple thread processes use fewer
resource.
Starvation:-
Indefinite waiting of a process that means a process never its change to
execute .
Solution
of Starvation is Ageing. Ageing is a
general concept used to avoid starvation problem. If process is waiting for
more time then priority of process will increase.
Inter process Synchronization:- Inter process synchronization is a
set of programming interface that allow a programmer to co-ordinate activity
among different program process. That can run concurrency in a operating
system. Inter process communication methods include pipe and sockets.
This
allows a program to handle many user request at the same time.
Process
executing concurrently in the operating system may be either independent or
co-operating procress.
A
process is independent if it can not affected by other processes executing in
the system.
A
process is co-operating process is that shares data with other process is
co-operating process.
These
are two types of fundamental model of Inter
process Synchronization (IPS)
1. Shared Memory
2. Message Passing
Shared Memory:- in this method 2 or more process
shared a single chunk of memory to communicate.
Message Passing :- Shared memory created in the kernel.
System call such as send and receive used for communication
Inter Process Synchronization :- Multilevel
process can have handles to the same
event semaphore or time object.
This object
to accomplish inter process synchronization. The process that create an object
can use the handle referred by the creation function . ex- semaphore , span
lock , mutual exclusion.
PROCESS SYNCHRONIZATION
The
processes with respect to synchronization are of two types- Co-operating
Process & Independent process
The
execution of one process affects or affected by other process then there
process are said to be co-operating process , otherwise they are said to be
Independent process.
Affecting
occurs due to shared variable common shared resource /data.
Some Point.
The
pre-emption is just a temporary stop, the will come back and continue the
execution.
If there
any possibility of solution becoming wrong pre-empt by taking the pre-emption.
If
any solution has the dead lock then process not satisfied
Producer
consumer problem:-
IN- is variable used by producer to
identify the next empty slot in the buffer
OUT- is a
variable used by consumer to identify the slot from where it has to consume the
item
COUNT- is a
variable used by consumer and producer to identify the no. of items present in
the buffer at any point of time.
CONDITION:-
1. When the
buffer is full , the producer is not allowed to produce item
2. When the
buffer is empty consumer is not allowed to consume the item.
NEXT TOPIC WILL COMING SOON
